Repeater

Loop over an array of items and execute actions once for each element. Supports loop variables, built-in iteration variables, and a configurable iteration limit.

Also covers the companion Update Variable node, which modifies loop variables during each iteration.

Workflow Node Loop / Iteration Array Processing Loop Variables

What is the Repeater node?

The Repeater node (also called a Group node) allows a workflow to loop over an array of items. It acts as a container — you place child nodes inside it, and those nodes execute once for each item in the array.

The Repeater supports user-defined loop variables, built-in iteration variables, and a configurable iteration limit. The companion Update Variable node — which only works inside a Repeater — lets you modify loop variables during each iteration.

What Repeater lets you do

Iterate over lists of items from your trigger or previous actions
Perform the same action multiple times — once for each array element
Process bulk data efficiently within a single konnector
Access built-in variables: current item, index, and total count
Define loop variables that accumulate values across iterations
Use child Filters, Paths, Code Blocks, and Update Variable nodes inside the loop

Prerequisites

What you'll need before adding a Repeater

An active Konnectify account with an existing konnector.
A konnector with at least one trigger configured.
An upstream node that produces an array field (trigger data, a previous action, or a Code Block output).
An understanding of array data structures and which actions should repeat for each item.
For loop variables: knowledge of what values you need to track or accumulate across iterations.

Understanding Repeater Logic

The Repeater executes its child nodes once for each item in the selected array. Understanding how iteration, variables, and scope work is key to building reliable loops.

Built-in variables (automatically available inside the loop)

Variable	Description
iterationValue	The current item from the array being iterated
currentIndex	Zero-based index of the current iteration (0, 1, 2, …)
totalItems	Total number of items in the array

Read-only: Built-in variables (iterationValue, currentIndex, totalItems) cannot be modified via Update Variable. They are only accessible inside the loop.

Variable scope

Scope	Behavior
Inside the loop	Loop variables are accessible by child nodes and can be read or updated
After the loop	Final values of loop variables are available to downstream nodes outside the Repeater
Built-in variables	Only accessible inside the loop — not available to downstream nodes after it completes

Array of objects

When the selected items array is an array of objects, the object's child properties are automatically extracted and made available for field mapping inside the loop.
iterationValue represents the current object; its properties can be accessed individually.
Exclusivity rule: If you select an array-of-objects field, it must be the only selected array — you cannot combine it with other arrays.

Key Components

Repeater Container PARENT NODE

The outer node that holds all child actions. It appears on the canvas as a container with a circular-arrows icon. Its height automatically adjusts based on the child nodes inside. Supports collapse/expand to hide or show child nodes.

Items Array REQUIRED

Defines which array the Repeater iterates over. Selected using the field mapper from an upstream node.

You can select multiple arrays — they will be iterated in parallel.
Arrays can come from your trigger, a previous action node, or a Code Block output.
If the array is empty at runtime, the loop executes 0 times; downstream nodes still run with final variable values.
If an array-of-objects is selected, it must be the only selected array (exclusivity rule).

Maximum Iterations SAFETY LIMIT

A configurable safety cap that prevents runaway loops and controls resource usage.

Range: 1 to 500 — Default: 500
If the array has more items than this limit, the loop stops after reaching it.
Set based on typical array sizes in your workflow to balance safety and performance.

Loop Variables OPTIONAL

Custom variables defined in the Repeater sidebar that persist across iterations and are accessible both inside and after the loop.

Each variable needs a unique key (name) and an initial value.
Key must be a valid JavaScript identifier: letters, numbers, $, _. Cannot start with a number, be empty, duplicate another name, or use reserved keywords.
Maximum 50 variables per Repeater.
Updated inside the loop via the Update Variable node.
Final values are available to downstream nodes after the loop completes.

Child Nodes (Nested Actions) LOOP BODY

Any node type can be placed inside a Repeater — App nodes, Filters, Paths, Code Blocks, and Update Variable nodes. They execute once per iteration. You can chain multiple nodes inside the Repeater. Deleting the Repeater cascade-deletes all child nodes.

Update Variable Node COMPANION NODE

A special node that only works inside a Repeater. It modifies loop variables during each iteration. Each update row specifies: "Set [variable] to [value]".

Add multiple rows to update multiple variables in a single node.
Cannot update the same variable twice in one Update Variable node (no duplicates).
Cannot update built-in variables (iterationValue, currentIndex, totalItems).
If no loop variables are defined in the parent Repeater, shows a warning and an empty dropdown.
At least 1 update row must be configured to save the node.
Displays a count of configured variables (e.g., "2 variables") with the first 2 variable names shown.

When to Use

Use a Repeater when your workflow needs to process every item in a list individually, rather than treating the list as a single value.

✓ Good fits

Bulk record processing (create or update multiple records)
Sending individual emails to a list of contacts
Complex operations on each item in a collection
Converting arrays from one format to another
Aggregating or accumulating results across items
Batch operations on groups of related records

✗ Not the right tool

Processing a single record (use a regular node)
Conditional branching on a single value (use a Filter or Path)
Nesting loops — Repeaters cannot be placed inside another Repeater
Workflows where only 1 Repeater is allowed and one already exists in the branch

Step-by-step Guide

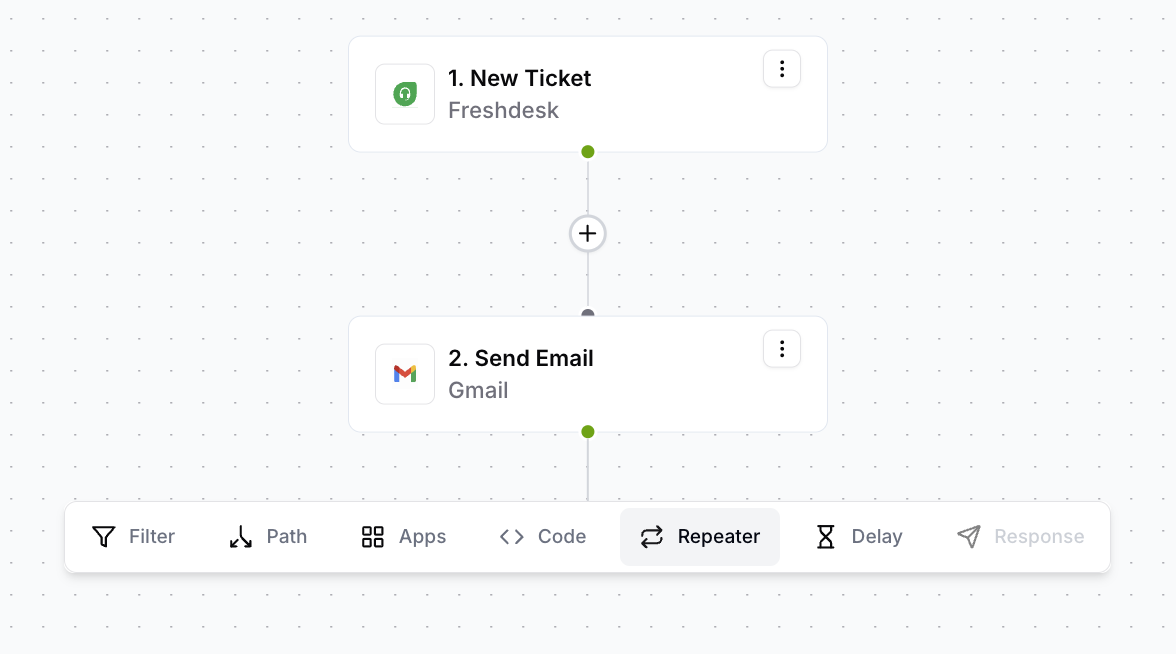

Add a Repeater node

Open your konnector in the Konnectify editor.
Click the + button on the node after which you want the loop.
Select Repeater from the node type menu.
The Repeater container appears on the canvas and the configuration sidebar opens automatically.

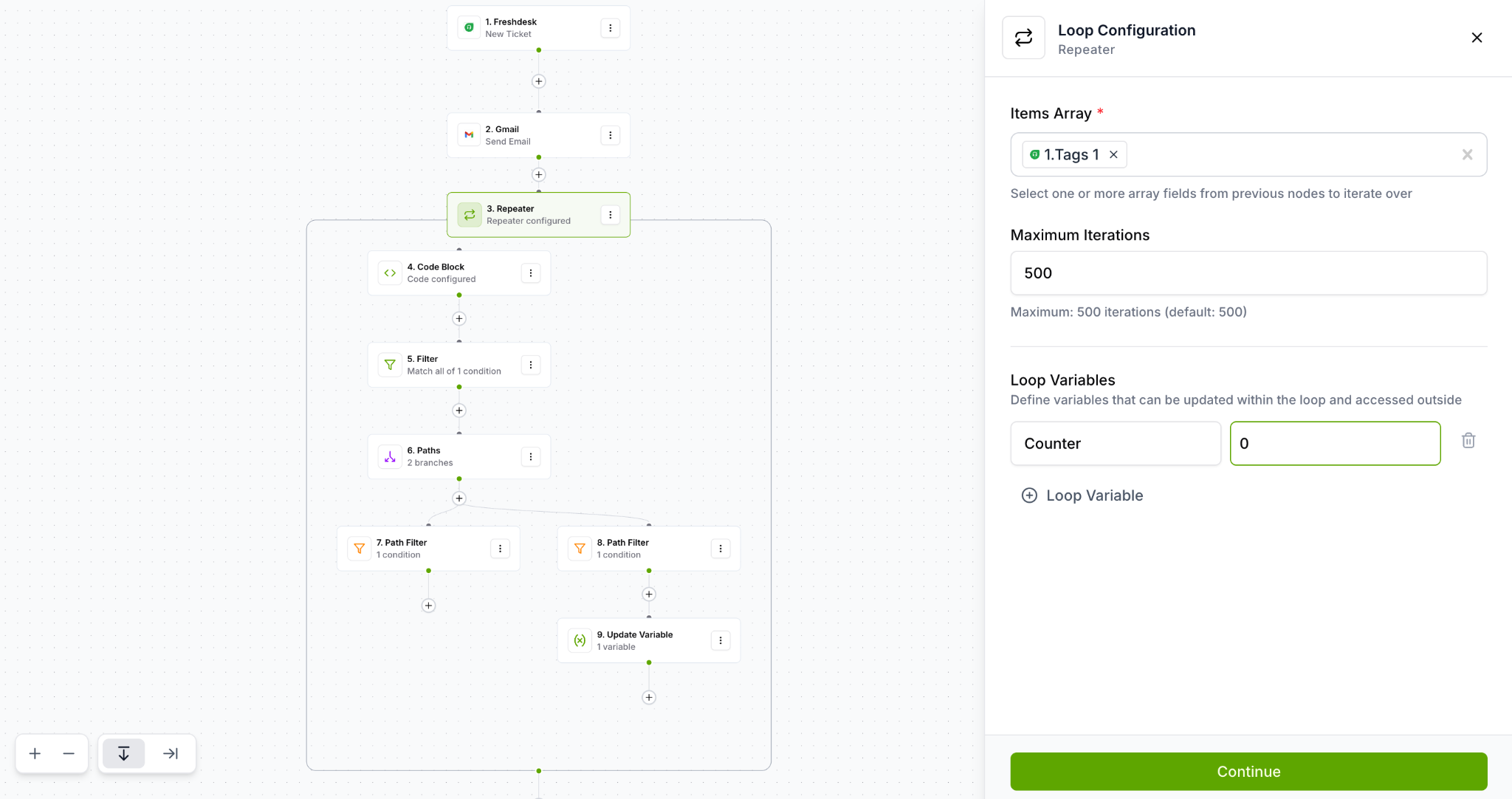

Configure the Items Array

In the Items Array section, click the field (marked with *).
Use the field mapper to select an array field from an upstream node — your trigger, a previous action, or a Code Block output.
You can select multiple arrays; they will be iterated in parallel.
If selecting an array of objects, it must be the only selected array.

Example: If your trigger returns a ticket with 5 tags, selecting the tags array causes the Repeater to execute 5 times — once per tag.

Set Maximum Iterations

In the Maximum Iterations field, enter a value between 1 and 500.
The default is 500. Adjust based on the typical size of your array.
If the array exceeds this limit at runtime, the loop stops after reaching it.

Define Loop Variables (optional)

In the Loop Variables section, click Add Variable.
Enter a Key (variable name — must be a valid JavaScript identifier).
Set an initial Value using the field mapper (literal or field reference).
Repeat for each variable you need. Maximum 50 per Repeater.

Common variable patterns

Counter: Key = count, Initial value = 0

Accumulator: Key = totalAmount, Initial value = 0

List builder: Key = processedIds, Initial value = [] (empty array)

Build actions inside the Repeater

Click the + button inside the Repeater container on the canvas.
Select any node type — App, Filter, Path, Code Block, Update Variable, etc.
Configure the node as normal. Use iterationValue to access the current item.
Click + again to chain additional nodes inside the loop.

Tip: You can add Filters, Paths, and nested logic inside the loop. Each executes once per iteration with the current item's data available for field mapping.

Add Update Variable nodes (optional)

Inside the Repeater, click + on any child node and select Update Variable.
The sidebar opens showing the loop variables defined in the parent Repeater.
Click Add to add an update row.
Select the variable to update and set its new value using the field mapper.
Add multiple rows to update several variables at once.

Update Variable examples

Increment counter: Set count to {{repeater:count}} + 1

Accumulate total: Set total to {{repeater:total}} + {{repeater:iterationValue.amount}}

Build list: Set names to append the current item's name

Save and validate

Click Continue in the Loop Configuration panel to save the Repeater settings.
Review the visual workflow — verify Items Array is mapped, iterations are set, and child nodes are configured.
Click Save in the top-right corner of the editor.
Your konnector now includes Repeater logic and is ready for testing.

Things to Know

Edge cases, canvas display states, and platform behaviours worth knowing before you build.

Repeater node display states

State	Display
Unconfigured	Subtitle: "Configure repeater" with warning indicator
Configured, no children	Subtitle: "Repeater configured" with warning (no children to execute)
Configured with children	Subtitle: "Repeater configured"
Warning propagation	If any child node has a warning or is unconfigured, the Repeater also shows a warning

Edge cases

Scenario	Behavior
Empty Repeater (no children)	Shows warning state; no iterations execute at runtime
Items array is empty at runtime	Loop executes 0 times; downstream nodes still run with final variable values
Maximum iterations exceeded	Loop stops at the configured limit (default 500)
Array of objects with other arrays	Blocked — array-of-objects must be the only selected array
No loop variables defined	Update Variable node shows a warning; dropdown is empty
Variable name conflict	Duplicate variable names are flagged with validation errors
Deleting the Repeater	Cascade-deletes all child nodes inside the Repeater
Update Variable outside Repeater	Not available in the add-node menu when outside a Repeater

Restrictions summary

Restriction	Detail
No nested Repeaters	Cannot place a Repeater inside another Repeater
One Repeater per branch	Only 1 Repeater allowed per workflow branch (trigger-to-terminal or PathRule-to-terminal)
Maximum iterations	500 (configurable, range 1–500)
Maximum loop variables	50 per Repeater
Variable naming	Must be valid JavaScript identifiers; no duplicates; no reserved keywords
Array-of-objects exclusivity	If an array-of-objects is selected, no other arrays can be added
Update Variable scope	Only works inside a Repeater; cannot be used outside
Built-in variables read-only	iterationValue, currentIndex, totalItems cannot be updated via Update Variable
Child node types	Any node type can be added inside a Repeater (App, Filter, Path, Code Block, Update Variable, etc.)
Repeater height	Automatically recalculated based on child node dimensions

Internal edge storage: Edges between child nodes are stored in the Repeater's data and extracted to the global edge list for rendering. This is handled automatically — no action required.

Examples

Send individual emails to a list of contacts

Marketing · CRM trigger · Email action per contact

EMAIL BLAST

Your trigger returns a campaign object with an array of contacts. You want to send a personalised email to each contact individually — not one bulk email.

Repeater configuration

Items Array: campaign.contacts (array of objects)

Max Iterations: 500

Child node — Send Email action

To: {{iterationValue.email}} Name: {{iterationValue.name}}

✓ Result — Repeater loops through all contacts. Each gets a personalised email with their own name and email address from iterationValue.

Count processed items and accumulate order totals

E-commerce · Order trigger · Loop variables + Update Variable

ACCUMULATOR

An order contains an array of line items. You want to count how many were processed and sum the total amount, then use both values in a downstream notification.

Repeater — Loop Variables

Key: count Initial: 0

Key: total Initial: 0

Update Variable node (runs each iteration)

Set count → {{repeater:count}} + 1

Set total → {{repeater:total}} + {{repeater:iterationValue.amount}}

✓ Result — After the loop, count = number of line items processed, total = sum of all amounts. Both are available to downstream Slack/email nodes.

Conditional processing with a Filter inside the loop

Support · Freshdesk trigger · Repeater + Filter

FILTER IN LOOP

A Freshdesk ticket has an array of attachments. You only want to upload attachments larger than 1 MB to S3. A Filter inside the loop handles the conditional check per item.

Loop structure

Repeater — iterates over ticket.attachments

Filter — condition: iterationValue.size Is greater than 1048576

S3 Upload — only runs if Filter passes

✓ Pass — Attachment > 1 MB. Filter passes. File uploaded to S3.

→ Skip — Attachment ≤ 1 MB. Filter stops this iteration. Loop continues to next attachment.

Complex nested structure — Repeater with Path and Update Variable

Inventory · Bulk update trigger · Multi-node loop

COMPLEX LOOP

A bulk inventory update contains an array of products. For each product: check its category with a Path (electronics vs accessories), update the right system, then increment a counter variable regardless of which branch ran.

Loop structure

Repeater — iterates over bulk_update.products

Path

Path 1 (category = electronics) → Update ERP system

Path 2 (category = accessories) → Update warehouse system

Update Variable — Set count → {{repeater:count}} + 1

✓ Result — Each product is routed to the right system by Path. After the loop, count reflects total products processed — available to downstream notification nodes.

Workflow Diagrams

Pattern 1 — Basic Repeater

Trigger → Repeater → Downstream Action

Loop (per item)

iterationValue → App action

Child action executes once per array item. Downstream action runs after all iterations complete with final loop variable values.

Pattern 2 — Repeater with Loop Variables and Update Variable

Trigger → Repeater (count=0, total=0)

Loop (per item)

App action → Update Variable (count+1, total+amount)

After loop: count & total → Slack notification

Loop variables accumulate during iterations. After the loop, their final values are available to downstream nodes.

Pattern 3 — Repeater with Filter (conditional skip)

Loop (per item)

Filter → pass Action | fail → skip iteration

A Filter inside the loop conditionally skips items that don't match. The loop continues to the next item — it does not stop the entire loop (unless "Stop the loop, if Filter fails" is enabled).

Testing Your Repeater

Thorough testing is especially important for Repeaters — a misconfigured loop can execute hundreds of times with unexpected data.

Test with a small array first

Use test data with a small array (3–5 items) for initial testing. This keeps execution fast and makes it easy to verify each iteration's output before testing at scale.

Verify the iteration count

Check the execution logs to confirm the Repeater ran the correct number of times — equal to the number of items in your array (or your Max Iterations limit if the array is larger).

Verify each iteration processed the right item

In the execution logs, confirm that each iteration used the correct iterationValue — the right item from the array, in order.

Check loop variable values after the loop

If you're using loop variables, verify their final values are what you expect — and that downstream nodes can access them correctly after the loop completes.

Test with an empty array

Confirm that when the array is empty, the loop runs 0 times and downstream nodes still execute with the initial loop variable values.

Validate child nodes before activating

All child nodes inside the Repeater must be configured and valid. If any child shows a warning, the Repeater will also show a warning. Resolve all issues before activating the konnector.

Good practice: Always start with a small test array (3–5 items). Run the konnector manually or wait for a real trigger event, then verify the logs for iteration count, per-item data, and loop variable final values before scaling up.

Frequently Asked Questions

Items Array & Iteration

What counts as an array field I can iterate over?+

Any array field from an upstream node — your trigger data, a previous action's output, or a Code Block return value. Common examples include lists of tags, line items, contacts, attachments, or email recipients.

You can select multiple arrays; they will be iterated in parallel. If selecting an array of objects, it must be the only selected array.

What happens if the array is empty at runtime?+

The loop executes 0 times. No child nodes run. However, downstream nodes outside the Repeater still execute — they will receive the initial values of any loop variables (since no iterations ran to update them).

What are iterationValue, currentIndex, and totalItems?+

These are built-in variables automatically provided by the Repeater for use inside the loop:

iterationValue — the current item from the array
currentIndex — zero-based index (first item = 0)
totalItems — total number of items in the array

These are read-only — they cannot be modified via Update Variable. They are only accessible inside the loop, not after it.

What happens when the array has more items than the Maximum Iterations limit?+

The loop stops after processing the configured maximum (default 500). Items beyond that limit are not processed.

To process larger arrays, increase the limit (max 500). If your use case regularly exceeds 500 items, consider batching your data upstream.

Can I select multiple arrays? What does "parallel iteration" mean?+

Yes. You can select multiple array fields from upstream nodes. They are iterated in parallel — on the first iteration, you get item[0] from each array; on the second, item[1] from each; and so on.

Exception: if one of your arrays is an array of objects, it must be the only selected array (the exclusivity rule).

Loop Variables & Update Variable

How do loop variables differ from built-in variables?+

Built-in variables (iterationValue, currentIndex, totalItems) are automatically provided by the Repeater, are read-only, and are only accessible inside the loop.

Loop variables are user-defined, start at an initial value you set, can be updated per-iteration via Update Variable, and their final values are accessible to downstream nodes after the loop completes.

Can I access loop variable final values after the loop?+

Yes. After the loop completes, the final values of all loop variables are available to downstream nodes outside the Repeater. This is how you pass aggregated results (like a total count or sum) to a subsequent Slack message or database entry.

Built-in variables are not available after the loop.

What naming rules apply to loop variables?+

Must be a valid JavaScript identifier (letters, numbers, $, _)
Cannot start with a number
Cannot be empty
Cannot duplicate another variable name in the same Repeater
Cannot use reserved JavaScript keywords

Can I update multiple variables in a single Update Variable node?+

Yes. Add multiple rows in the Update Variable node — each row updates one variable. The constraint is you cannot update the same variable twice in a single Update Variable node (no duplicate rows for the same variable).

If you need to update the same variable twice, add a second Update Variable node in the chain.

What happens if I add an Update Variable node but no loop variables are defined?+

The Update Variable node shows a warning and the variable dropdown is empty. You must first define at least one loop variable in the parent Repeater's configuration before the Update Variable node can be configured.

Structure & Restrictions

Can I nest a Repeater inside another Repeater?+

No. Nested Repeaters are not supported. You cannot place a Repeater inside another Repeater.

If you need to process nested arrays, consider flattening them in a Code Block upstream before feeding the result into a single Repeater.

How many Repeaters can I have in one workflow?+

One Repeater per workflow branch. A "branch" is defined as the path from a trigger (or PathRule) to a terminal node. You can have Repeaters in separate Path branches, but not two Repeaters in sequence within the same branch.

What node types can I add inside a Repeater?+

Any node type — App nodes, Filters, Paths, Code Blocks, and Update Variable nodes. You can create complex multi-node chains inside the loop, including conditional logic with Filters and branching logic with Paths.

What happens when I delete a Repeater?+

Deleting the Repeater node cascade-deletes all child nodes inside it — including any Update Variable nodes, Filters, Paths, and other actions in the loop. This cannot be undone, so ensure you no longer need those nodes before deleting.

What does read-only mode mean on a Repeater?+

All configuration fields (Items Array, Maximum Iterations, Loop Variables) and child node editing are disabled. Applied when you lack edit permissions or the konnector is locked during execution.

Ready to build smarter workflows?

Add a Repeater to your konnector and start processing arrays of data — one item at a time, with full control over variables and logic.

Get started free →
