Repeater - How to Use Repeater in Konnectify

Repeater allows you to iterate over arrays of data in your Konnectify konnectors, enabling you to perform the same action multiple times for each item in a list. This powerful feature lets you process bulk data efficiently and automate repetitive tasks at scale.

Time to complete: 15-20 minutes
 Difficulty: Intermediate
 Prerequisites: Understanding of basic konnector creation and arrays/lists

What You'll Need

Before you begin, ensure you have:

• An active Konnectify account with an existing konnector

• A konnector with at least one trigger configured

• Understanding of array data structures and how they appear in your workflow

• Knowledge of which actions should be repeated for each array item

Understanding Repeater

Repeater in Konnectify enables you to loop through arrays of data and perform actions on each item. Instead of processing only single records, Repeater allows you to:

• Iterate over lists of items from your trigger or previous actions

• Perform the same action multiple times, once for each array element

• Process bulk data efficiently within a single konnector

• Create complex workflows that handle multiple records simultaneously

• Update or transform collections of data systematically

Key Components of Repeater

• Items Array – The array of data you want to iterate over

• Maximum Iterations – A safety limit on how many times the loop will run

• Loop Variables – Variables that can be updated within the loop and accessed outside

• Nested Actions – Actions and logic that execute for each iteration

• Loop Scope – The contained workflow that repeats for each array item

When to Use Repeater

Repeater is ideal for scenarios such as:

• Bulk record processing: Create or update multiple records in a destination app

• List operations: Send individual emails to a list of contacts

• Multi-step processing: Perform complex operations on each item in a collection

• Data transformation: Convert arrays of data from one format to another

• Aggregation tasks: Collect information from multiple items and combine results

• Batch operations: Process groups of related records together

Step 1: Add a Repeater to Your konnector

1. Open your existing konnector in the Konnectify editor

2. In the workflow canvas, locate the point where you want to add looping logic

3. Click the + button below the node where you want to process array data

4. From the configuration options, select Repeater under the Tools section

5. A Repeater node is added to your workflow, showing:

   • The repeater icon (circular arrows)

   • "Configure repeater" description

   • A contained area for nested actions

Step 2: Access the Loop Configuration Panel

1. Click on the Repeater node you just created

2. The "Loop Configuration" panel opens on the right side

3. You'll see several sections:

   • Items Array – Define which array to iterate over

   • Maximum Iterations – Set the loop limit

   • Loop Variables – Define variables for use within and outside the loop

Step 3: Configure the Items Array

The Items Array determines which collection of data the Repeater will iterate over.

Select Your Array Field

1. In the Items Array section (marked with *), click on the field

2. You'll see the prompt: "Select one or more array fields from previous nodes to iterate over"

3. Choose an array field from:

   • Your trigger data (if it contains arrays)

   • Previous action nodes that return arrays

   • Previous Code Block outputs that include arrays

4. The selected array will be displayed, for example: 1.Tags 1

Understanding Array Data

• Arrays are collections of items, often represented as lists in your data

• Common examples: tags, line items, contact lists, file attachments, email recipients

• Each item in the array will be processed once during the loop

• The Repeater automatically iterates through all items in the selected array

Example: If your trigger returns a ticket with 5 tags, selecting the tags array will cause the Repeater to execute 5 times, once for each tag.

Step 4: Set Maximum Iterations

Maximum Iterations is a safety feature that prevents infinite loops and controls resource usage.

Configure the Limit

1. In the Maximum Iterations field, enter or keep the default value: 500

2. This setting means:

   • The loop will stop after processing 500 items, even if the array is larger

   • Default value is 500 iterations

   • You can adjust this based on your needs

Best Practices for Maximum Iterations

• Keep it reasonable: Higher limits consume more execution time

• Consider your data: Set the limit based on typical array sizes in your workflow

• Monitor performance: Large iteration counts may impact konnector speed

• Use for safety: Prevents runaway loops from consuming excessive resources

Note: The display shows "Maximum: 500 iterations (default: 500)" to indicate the current setting.

Step 5: Define Loop Variables (Optional)

Loop Variables allow you to track information across iterations and access it after the loop completes.

Understanding Loop Variables

Loop Variables are useful for:

• Counting iterations or tracking progress

• Accumulating values across multiple iterations

• Storing results that need to be accessed after the loop

• Maintaining state between loop iterations

Add Loop Variables

1. In the Loop Variables section, you'll see the description: "Define variables that can be updated within the loop and accessed outside"

2. For each variable you want to create:

   • Variable Name: Enter a descriptive name (e.g., "count", "totalAmount", "processedItems")

   • Value: Set the initial value for the variable

3. Click the ⊕ Loop Variable button to add additional variables

4. You can delete any variable by clicking the trash icon on the right

Example Loop Variables

Counting iterations:

• Variable name: counter

• Value: 0

Tracking totals:

• Variable name: totalAmount

• Value: 0

Collecting results:

• Variable name: processedIds

• Value: `` (empty array)

Note: The screenshot shows placeholder text "Variable name (e.g., count)" and "Value" fields with example entries including "Konnectify" as a variable name.

Step 6: Build Actions Inside the Repeater

The real power of Repeater comes from the actions you place inside the loop, which execute for each array item.

Add Actions to the Loop

1. Inside the Repeater container on the workflow canvas, you'll see a + button

2. Click the + button to add an action that should repeat

3. Configure the action as you normally would:

   • Select the app

   • Choose the action event

   • Set up field mapping

Access Current Item Data

When mapping fields inside a Repeater:

• You can access the current item from the array being iterated

• The current item's fields are available in the field mapper

• Each iteration automatically processes the next item in the array

Add Multiple Actions in the Loop

You can create complex workflows within the Repeater:

1. Add your first action (e.g., Code Block to process data)

2. Click the + button below it to add another action

3. Add conditional logic with Filters

4. Create branching paths with Paths

5. Chain multiple actions together

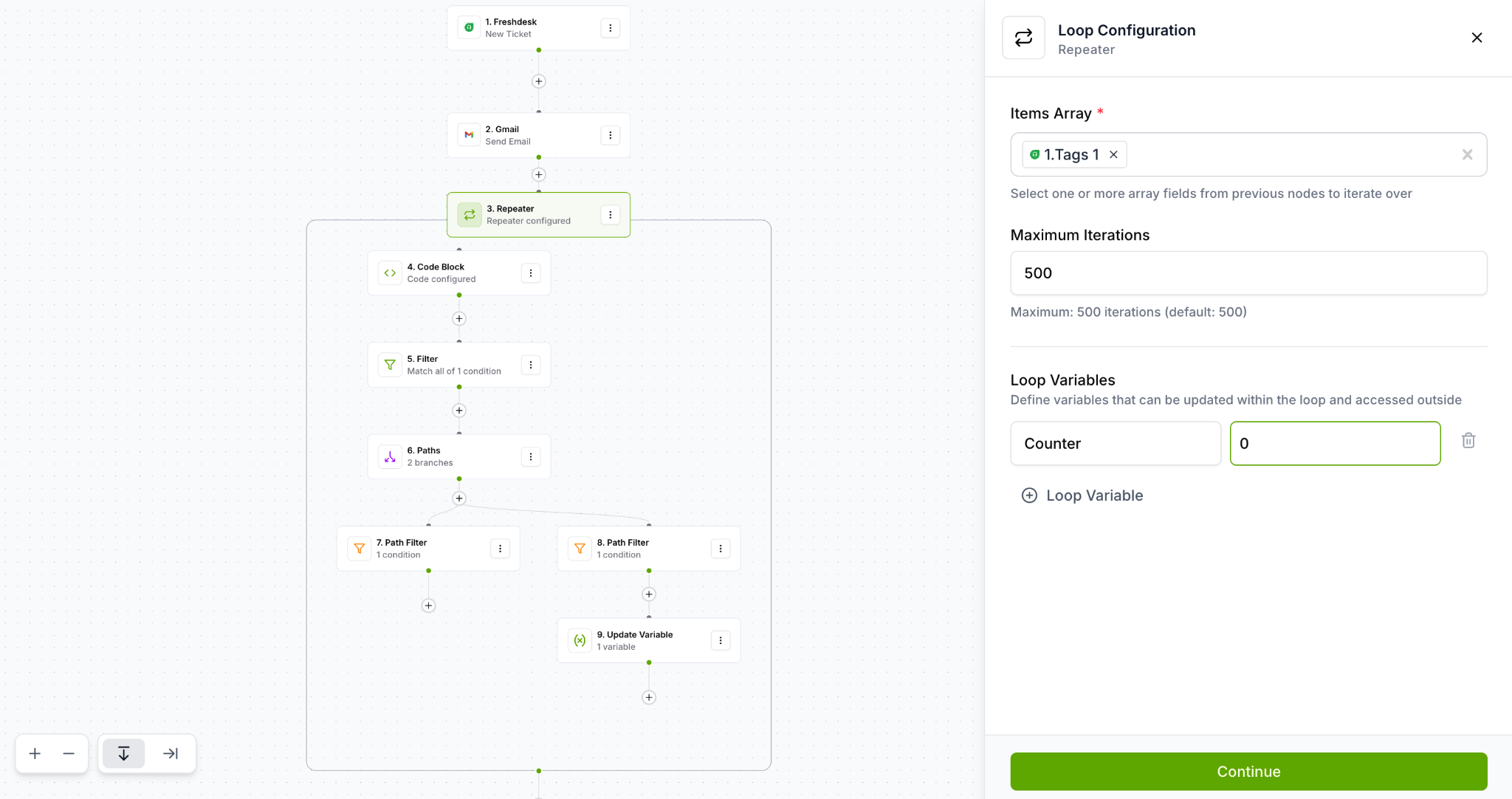

The screenshot shows a complex nested structure:

• Node 3: Repeater - Configure repeater

  • Node 4: Code Block - Write custom JavaScript

  • Node 5: Filter - Configure filter conditions

  • Node 6: Paths - 2 branches

    • Node 7: Path Filter - No conditions

    • Node 8: Path Filter - No conditions

Step 7: Update Loop Variables (Optional)

If you defined Loop Variables, you can update them within your Repeater actions.

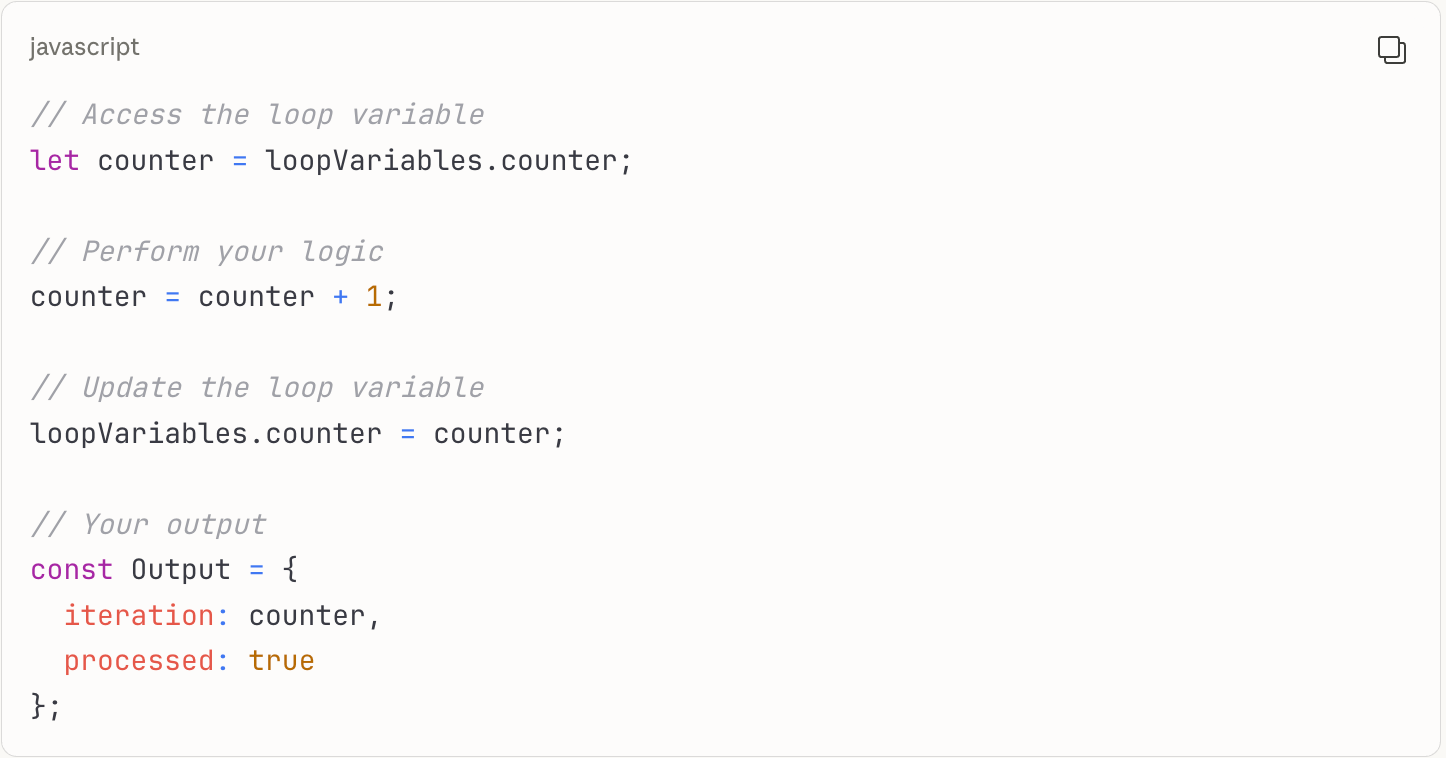

Updating Variables in Code Block

If using a Code Block inside your Repeater:

Common Variable Update Patterns

Increment counters:

javascript

loopVariables.counter = loopVariables.counter + 1;

Accumulate values:

javascript

loopVariables.totalAmount = loopVariables.totalAmount + currentItem.amount;

Collect results:

javascript

loopVariables.processedIds.push(currentItem.id);

Step 8: Save and Test Your Repeater

Before activating your konnector with a Repeater, thorough testing ensures the loop works correctly.

Review Your Configuration

1. Click the Continue button in the Loop Configuration panel

2. Review the visual workflow to ensure:

   • Items Array is correctly mapped

   • Maximum Iterations is set appropriately

   • Loop Variables are defined if needed

   • Actions inside the Repeater are properly configured

Save Your Changes

1. Click the Save button in the top-right corner

2. Your konnector now includes Repeater logic

Test the Repeater

Testing is crucial for Repeaters to verify the loop processes data correctly:

1. Use test data with a small array (3-5 items) for initial testing

2. Run your konnector manually or wait for a real trigger event

3. Verify in the execution logs:

   • The Repeater executed the correct number of times

   • Each iteration processed the expected array item

   • Actions within the loop completed successfully

   • Loop Variables updated as expected

4. Check that subsequent actions (after the Repeater) can access Loop Variables if needed
