Paths

Creates multiple conditional branches in a workflow. Each branch has its own conditions — the first branch whose conditions match is the one that executes.

Workflow Node Conditional Branching Multi-branch Logic Path Rules

What is the Path node?

The Path node creates multiple conditional branches in a workflow. Unlike a Filter which is a single pass/fail gate, a Path splits the workflow into 2 or more branches, each with its own set of conditions.

During execution, branches are evaluated in order. The first branch whose conditions match is the one that executes. Subsequent branches are not evaluated once a match is found.

Each branch is represented by a PathRule node, which uses the same condition system as Filters — groups, conditions, and operators work identically.

What Path lets you do

Route a workflow into 2 or more independent branches
Evaluate each branch in sequence — first match wins
Apply different downstream actions for different data scenarios
Nest paths up to 3 levels deep for complex routing logic
Add up to 10 branches per Path node
Combine with Filters, Repeaters, and other nodes inside each branch

Prerequisites

What you'll need before adding a Path

An existing workflow in Konnectify with at least one upstream node that produces data.
Knowledge of the field names and value types you want to branch on.
Familiarity with Filter conditions — PathRule uses the same condition builder.
An understanding of your branching logic before you build (sketch it out first for complex flows).

Understanding Path Rules & Logic

Path uses the same group-based condition system as Filters. Each branch (PathRule) is independently configured with its own groups and conditions.

Branch evaluation order

Rule	Behavior
Sequential evaluation	Branches are checked in order — Path 1, Path 2, Path 3, etc.
First match wins	The first branch whose conditions pass is executed. The rest are skipped.
No match	If no branch matches, execution stops (no downstream actions run).

Condition system (same as Filter)

Concept	How it works
ALL (match type)	Every condition in the group must be true
ANY (match type)	At least one condition in the group must be true
AND (group operator)	Both groups must pass
OR (group operator)	At least one group must pass

Depth limits

Constraint	Limit
Maximum path depth	3 levels of nesting
Maximum branches per path	10 branches
Minimum branches per path	1 (last branch cannot be deleted)
Default branches on creation	2 (Path 1 and Path 2)

How depth is calculated

Depth is measured by counting PathRule nodes when tracing backwards through the workflow:

A node directly after a trigger = depth 0
A node inside the first level of branching (under a PathRule) = depth 1
A node inside a nested path (PathRule inside PathRule) = depth 2
At depth 3, no more Path nodes can be added

Insertion depth formula: When inserting a Path between existing nodes, the system checks: backwardDepth + 1 + forwardDepth must not exceed 3. If it would, the Path option is disabled with: "Maximum path depth of 3 reached".

Key Components

Path Node CONTAINER

The parent node that holds all branches. Created with 2 default branches (Path 1 and Path 2). Supports collapsing to hide all branches and their descendants. The subtitle shows the branch count (e.g. "3 branches"). When collapsed, the "+" button for adding new branches is hidden.

PathRule Node BRANCH

Each branch of a Path is a PathRule node. It uses the same condition builder as a Filter — groups, conditions, operators, and validation rules are identical. Key behaviours:

Can contain child nodes (actions, Filters, Code Blocks, Repeaters, nested Paths).
Supports collapsing to hide descendants (the PathRule itself stays visible).
Shows a "No conditions" subtitle when unconfigured.
When inside a Repeater, shows: "Stop the loop, if Path Rule fails" checkbox.

Branches LOGIC PATHS

Branches represent the different execution paths your workflow can take. Each is numbered sequentially (Path 1, Path 2…). Up to 10 branches per Path node. The last branch cannot be deleted. Deleting a branch cascade-deletes all its child nodes and descendants.

Condition System IDENTICAL TO FILTER

Each PathRule uses the exact same condition builder as a Filter node: groups with ALL/ANY match types, conditions with Field / Operator / Value, group operators (AND/OR), and the same set of text, number, date, boolean, and generic operators. See the Filters documentation for the full operator reference.

Nesting UP TO 3 LEVELS

A PathRule branch can contain another Path node, enabling nested routing logic. Nesting is limited to 3 levels deep. Each level of nesting consumes 1 depth unit. At depth 3, the Path option disappears from the add menu.

When to Use

Use a Path node when you need different actions to execute depending on which conditions the incoming data matches. The key distinction from a Filter is that Path doesn't stop the workflow — it routes it to the right branch.

✓ Good fits

Different actions for different ticket types or statuses
Routing to different teams based on a field value
Handling multiple data scenarios in one workflow
Replacing multiple separate workflows with one branched flow
Progressive fallback logic (try A, then B, then C)

✗ Not the right tool

Simply stopping a workflow on a condition (use a Filter)
Iterating over a list of items (use a Repeater)
Transforming or mapping data (use a Transform node)
Running all branches simultaneously (Path runs only the first match)

Step-by-step Guide

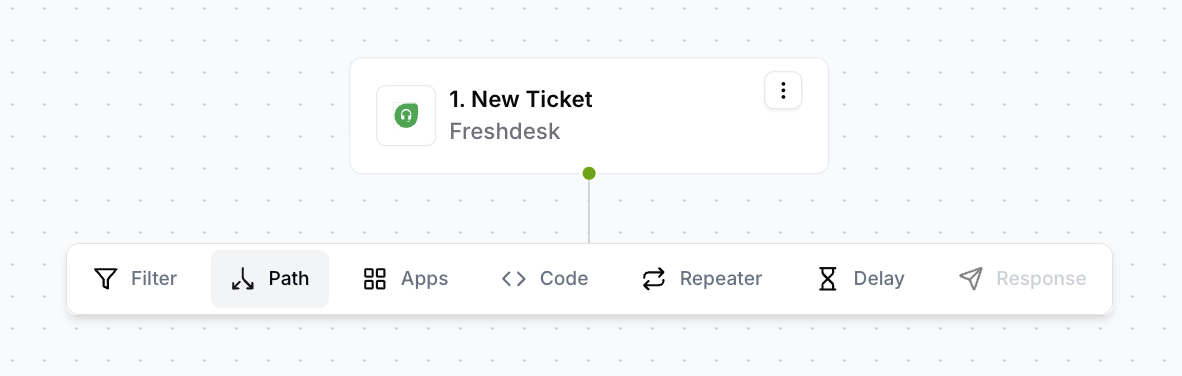

Add a Path node

Open your workflow on the canvas.
Click the + button on any existing node.
Select Path from the node type menu.

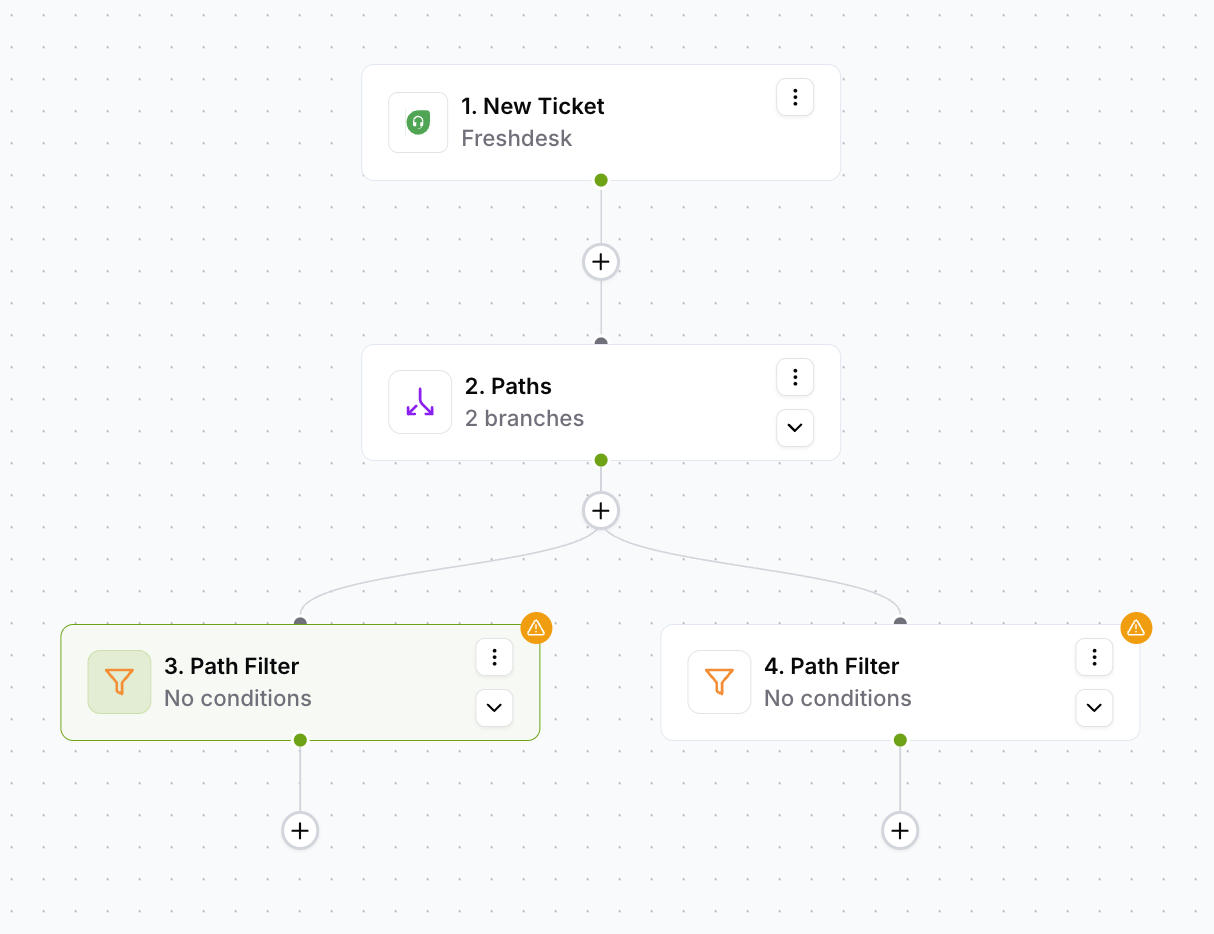

The Path node is created with 2 default branches — Path 1 and Path 2.
The sidebar automatically opens to Path 1 for condition configuration.

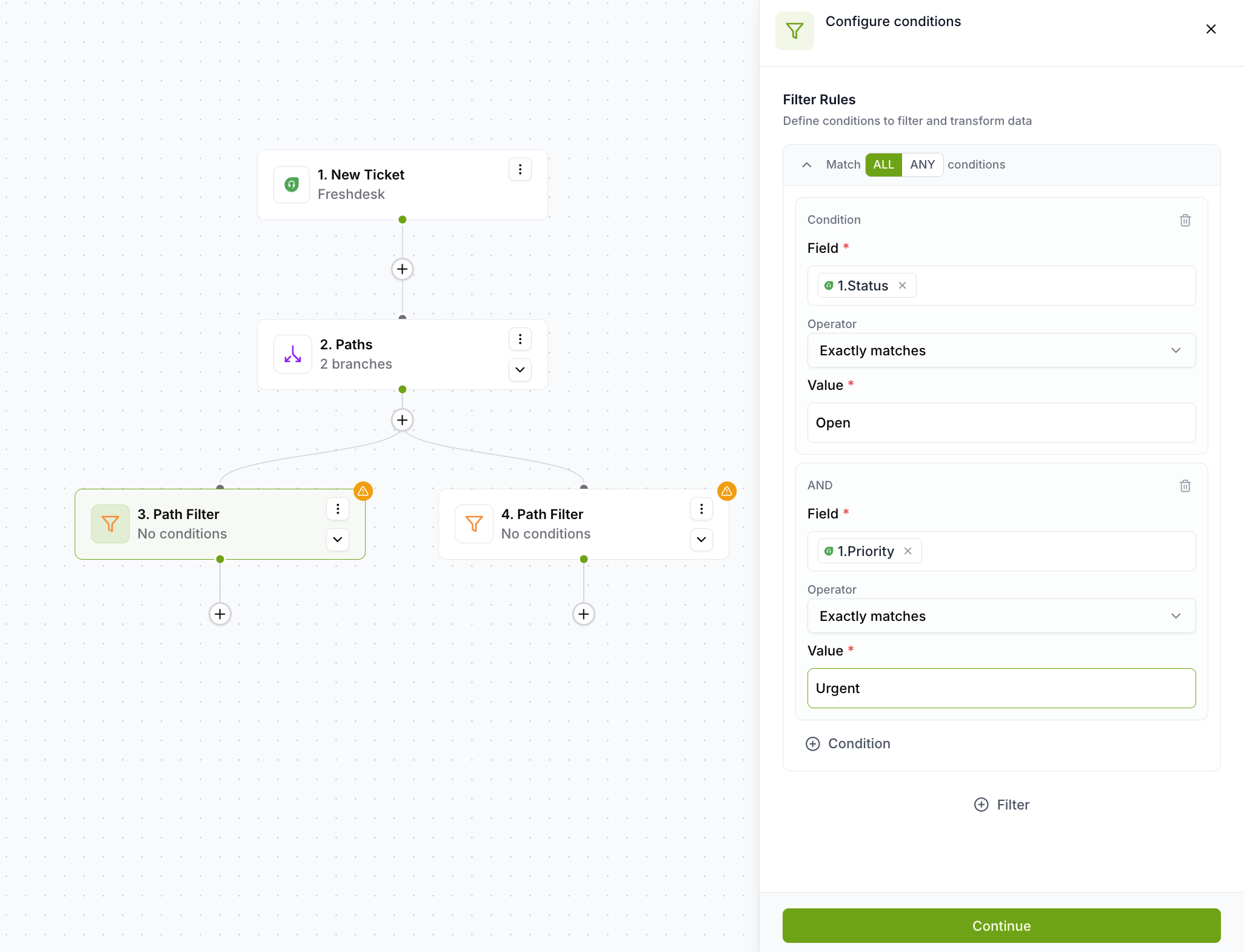

Configure Path 1 conditions

Click on Path 1 in the canvas to open its sidebar.
Set the group match type: ALL or ANY.
Add conditions using Field / Operator / Value.
Click Continue to save and move to the next node.

Tip: PathRule uses the exact same condition builder as a Filter. See the Filters documentation for the full operator reference.

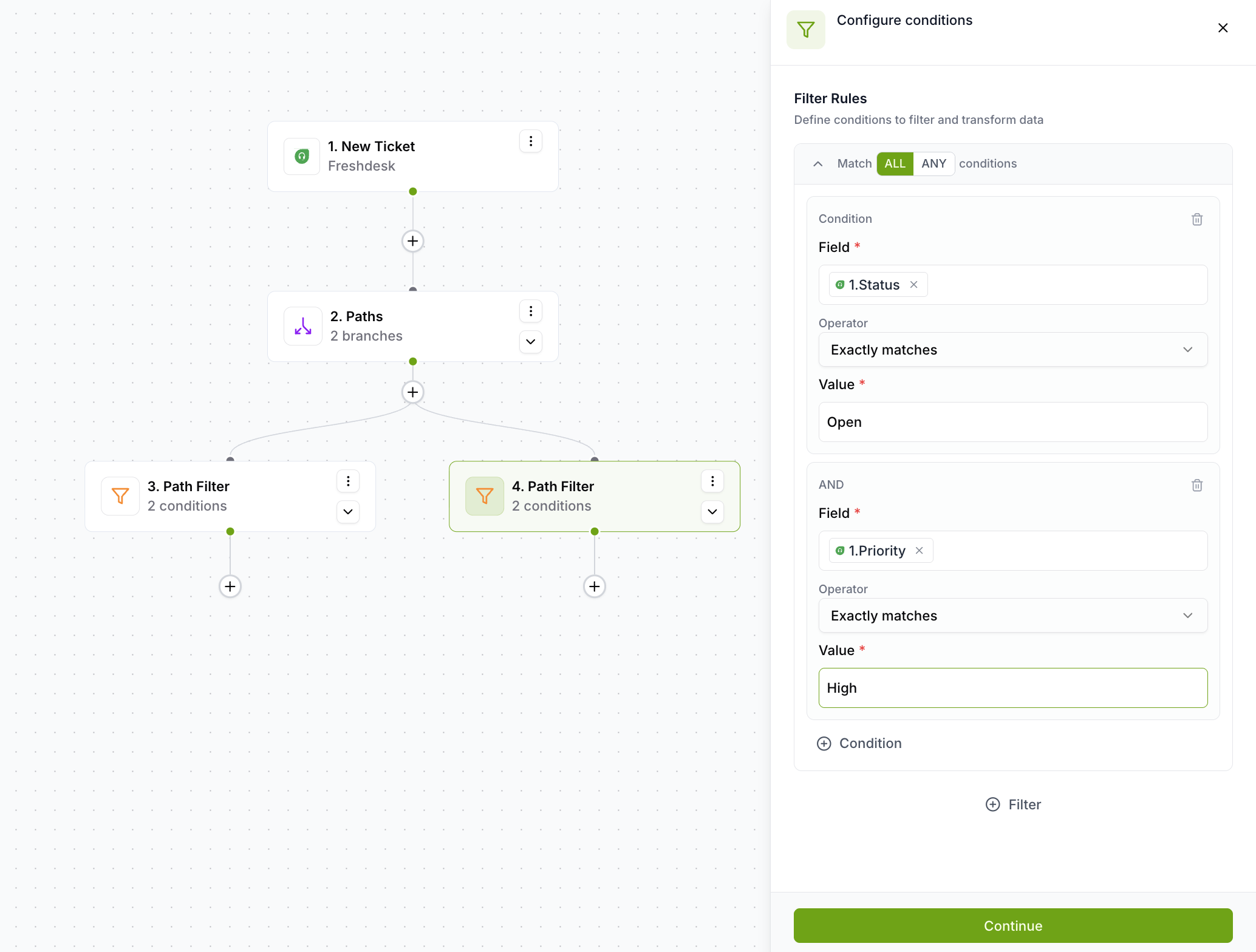

Configure Path 2 conditions

Click on Path 2 in the canvas.
Configure its conditions independently from Path 1.
Click Continue to save.

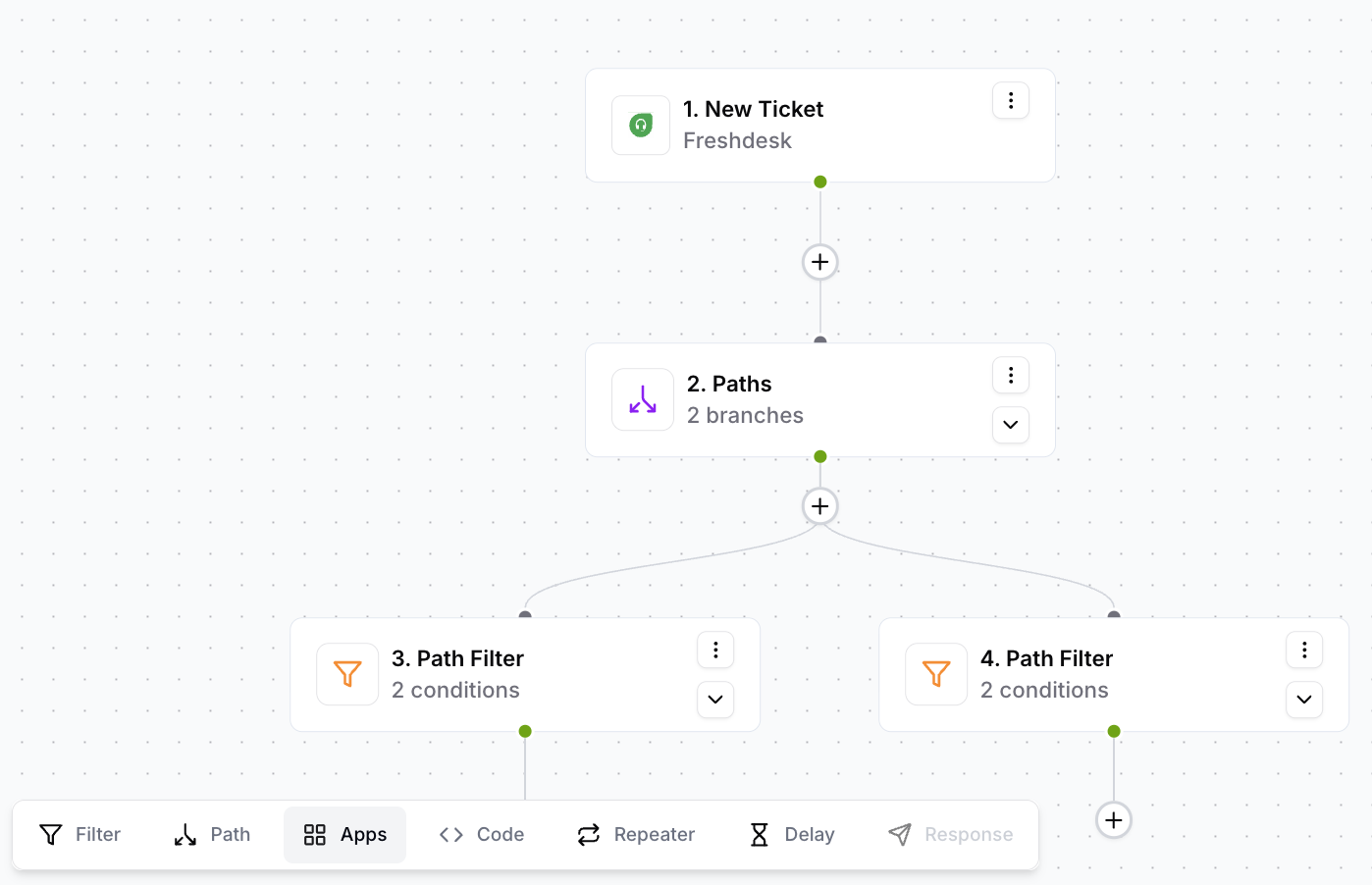

Add child nodes to each branch

Click the + button on a PathRule node.
Select the node type to add (App, Filter, Code Block, Repeater, etc.).
The new node becomes a child of that branch and executes when the branch matches.

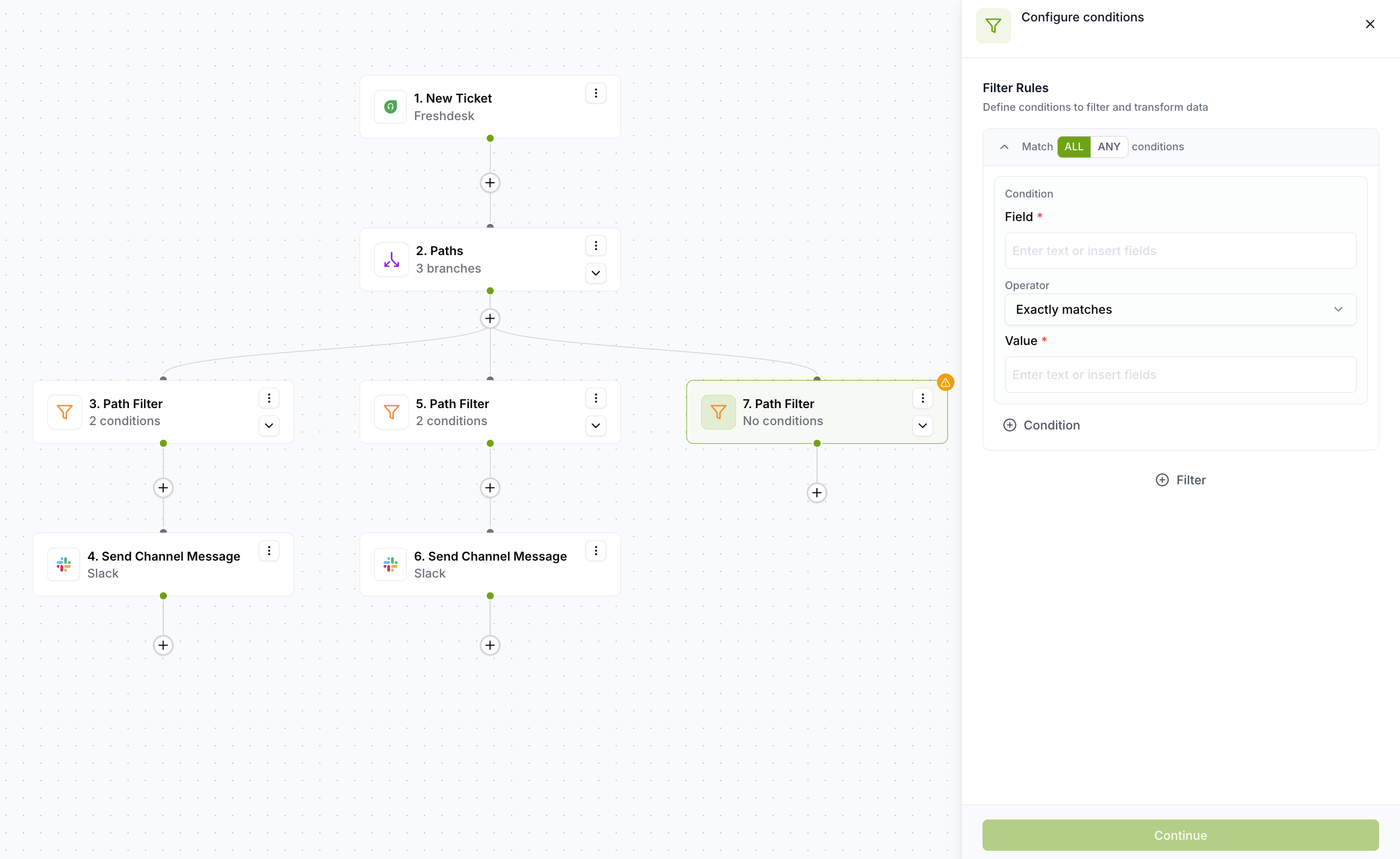

Add more branches (optional)

Click the + button shown below the Path node on the canvas.
A new PathRule branch is added and the sidebar opens to configure it.
Repeat until all your routing scenarios are covered (up to 10 branches).

Insert a Path between existing nodes (optional)

Click the + on a connection between two existing nodes.
Select Path from the menu.
A confirmation dialog appears: "This will create a new path here. All existing child nodes will be moved under the first path."
Confirm to insert — existing downstream nodes are reparented to Path A (branch index 0). Path B starts empty.

Note: The system validates depth in both directions before allowing insertion. If the combined depth would exceed 3, the Path option is disabled.

Save and validate

Each PathRule must pass validation before the workflow can be saved.
Unconfigured PathRules show a warning state with "No conditions" subtitle.
Resolve any red validation errors on conditions (field, operator, or value missing).
Once all branches are valid, the Path node is active in your workflow.

Things to Know

Edge cases and platform behaviours worth knowing before you build.

Scenario	Behavior
No branch matches	Execution stops silently — no downstream actions run
All branches unconfigured	Path node shows warning state; each PathRule shows "No conditions" subtitle
Inserting Path between nodes	All existing downstream nodes are reparented to the first branch (Path A); second branch starts empty
Collapsing the Path node	All branches and descendants are hidden; "+" to add branches is also hidden
Adding a branch while collapsed	Not possible — you must expand the Path node first
Deleting a PathRule	Cascade-deletes all descendant nodes (child actions, nested paths, etc.); the deleted branch's path ID is removed from the parent Path's paths array
Deleting the Path node	Cascade-deletes ALL branches and ALL descendants; incoming/outgoing edges are reconnected
Deleting the last branch	Not possible — delete button is hidden when only 1 branch remains
Path inside a Repeater	Allowed; depth constraints still apply; PathRule shows "Stop the loop" checkbox
Repeater after a Path	Blocked if a Repeater already exists in the backward trace. Message: "Cannot add path after repeater"
Reaching 10 branches	"+" button is disabled with: "Maximum branches of 10 reached"
Reaching depth 3	Path option disappears from the add node menu entirely
Read-only mode	All branch addition, deletion, and condition editing are disabled

Restrictions summary

Restriction	Detail
Maximum path depth	3 levels of nesting
Maximum branches per path	10
Minimum branches per path	1
Default branches on creation	2 (Path 1 and Path 2)
Branch execution order	Sequential — first match executes
Insertion behavior	Existing downstream nodes always reparented to first branch (Path A)
Condition system	Identical to Filter — same groups, conditions, operators, and validation rules
Cannot add Path after Repeater	Unless the node is inside the Repeater; enforced by backward trace check
Read-only mode	All branch addition, deletion, and condition editing disabled

Important: Field references in PathRule conditions must point to valid upstream nodes. Broken references are flagged visually. Always verify upstream nodes are connected before testing.

Examples

Route support tickets by priority

Support ops · Freshdesk trigger · 3 branches

FRESHDESK

Your support workflow handles Freshdesk tickets differently based on priority. Urgent tickets need immediate Slack paging, high tickets create a task in Asana, and normal tickets are logged and closed.

Path 1 — Urgent (evaluated first)

priorityExactly matchesurgent

Path 2 — High

priorityExactly matcheshigh

Path 3 — Normal (catch-all)

priorityExactly matchesnormal

✓ Urgent ticket — Matches Path 1. Slack alert sent to on-call team. Path 2 and 3 skipped.

✓ High ticket — Doesn't match Path 1. Matches Path 2. Asana task created.

✓ Normal ticket — Matches Path 3. Logged and auto-resolved.

Onboard new users by plan type

SaaS onboarding · Sign-up trigger · 3 branches

ONBOARDING

When a user signs up, route them to different onboarding sequences depending on their plan — Enterprise gets a personal call, Pro gets an automated email sequence, and Free gets a self-serve guide.

Path 1 — Enterprise

planExactly matchesenterprise

Path 2 — Pro

planExactly matchespro

Path 3 — Free

planExactly matchesfree

✓ Enterprise — Path 1 matches. CSM notified and kickoff call scheduled in Cal.

✓ Pro — Path 2 matches. 5-email drip sequence triggered in Customer.io.

✓ Free — Path 3 matches. Welcome email sent with self-serve docs link.

Handle e-commerce order status updates

E-commerce · Order update trigger · 4 branches

E-COMMERCE

When an order status changes, different downstream actions are needed for each status. Path makes this a single clean workflow instead of four separate ones.

Path 1 status Exactly matches shipped

Path 2 status Exactly matches delivered

Path 3 status Exactly matches cancelled

Path 4 status Exactly matches refunded

✓ Shipped — Tracking email sent to customer via SendGrid.

✓ Delivered — Review request triggered after 2-day delay.

✓ Cancelled — Cancellation confirmed, inventory updated in Shopify.

✓ Refunded — Finance team notified and refund record created in Notion.

Nested Path — route by region then tier

CRM · Deal update trigger · Nested 2-level Path

NESTED

A deal update first branches by region (APAC vs EMEA), then inside each region branches again by deal tier. This is a 2-level nested Path — depth 1 outer, depth 2 inner.

Level 1 — Outer Path (depth 1)

Path A: region Exactly matches APAC

Path B: region Exactly matches EMEA

Level 2 — Inner Path inside Path A (depth 2)

Path A1: deal_tier Exactly matches enterprise → Notify APAC enterprise team

Path A2: deal_tier Exactly matches smb → Notify APAC SMB team

Depth note: This nested setup is at depth 2. You could nest one more level (depth 3) inside Path A1 or A2, but that would be the maximum. Adding another nested Path at depth 3 is not possible.

Workflow Diagrams

Pattern 1 — Basic 2-branch Path

Trigger → Path

PATH 1 conditions match → Action A

PATH 2 conditions match → Action B

Branches are evaluated top-to-bottom. First match executes. Only one branch runs per record.

Pattern 2 — Multi-branch with child nodes

Trigger → Path

PATH 1 → App node → Slack alert

PATH 2 → Filter → Email

PATH 3 → Log entry

Each branch can have any number of child nodes and its own independent action chain.

Pattern 3 — Nested Path (2 levels)

Trigger → Path (depth 1)

PATH 1

Nested Path (depth 2)

Path 1A → Action X

Path 1B → Action Y

PATH 2 → Action Z

Path 1 contains a nested Path at depth 2. One more level of nesting is possible (depth 3) before the limit is reached.

Testing Your Path

Before activating a workflow, confirm your branching logic routes data to the right paths.

Test each branch independently

Use the Test button on your trigger node and supply a record that should match each branch. Verify the correct PathRule activates and its child nodes fire as expected.

Verify branch order matters

If a record could match multiple branches, confirm the first matching branch is the intended one. Re-order branches if the priority is wrong.

Test the no-match scenario

Use a record that matches none of your branches. Confirm the workflow stops silently as expected and no unintended actions fire.

Check field reference pills

If a pill turns red in any PathRule, the upstream node it references is disconnected. Fix the connection before testing.

Validate all branches before activating

Each PathRule must pass validation. Resolve any red errors — the workflow cannot be saved while any branch has incomplete conditions.

Good practice: Test with at least one record for each branch, plus one record that matches no branch. For nested Paths, test the full chain to confirm depth-2 routing works as expected.

Frequently Asked Questions

Branching & Execution

What happens if more than one branch matches?+

Only the first matching branch executes. Branches are evaluated in order and evaluation stops as soon as one matches. If you want both to run, you need two separate workflows or two separate Filter nodes.

To control which branch runs when multiple could match, order branches by priority (most specific first).

What happens if no branch matches?+

Execution stops silently — no error is logged, no retry is triggered, and no downstream actions run.

To handle unmatched records, add a final catch-all branch with a condition that is always true (e.g. using the Exists operator on a required field).

What is the difference between a Path and a Filter?+

A Filter is a single pass/fail gate — it either lets the workflow continue or stops it. A Path routes the workflow into one of multiple branches, each with its own downstream actions.

Use a Filter when you want to stop the workflow on a condition. Use a Path when you want to take different actions for different data scenarios.

Can I reorder branches?+

Yes. Branch order determines evaluation sequence, so ordering matters. Drag and drop branches in the canvas to reorder them. The first branch is always evaluated first.

Can I add nodes after the Path node that run regardless of which branch matched?+

Yes. Nodes placed downstream of the Path node (not inside a branch) run after whichever branch executed. This is useful for shared cleanup or logging actions that should always happen.

Keep in mind these nodes only run if a branch matched — if no branch matched, the workflow stopped before reaching them.

Structure & Limits

How many branches can a Path node have?+

Up to 10 branches per Path node. When you reach 10, the "+" button is disabled with the message: "Maximum branches of 10 reached".

Each branch starts with 2 by default. The last branch cannot be deleted.

How deep can I nest Path nodes?+

Up to 3 levels deep. Depth is measured by counting PathRule nodes when tracing backwards through the workflow. At depth 3, the Path option disappears from the add node menu.

When inserting between existing nodes, the system also checks forward depth to ensure the combined total stays within 3.

Can I delete a branch that has child nodes?+

Yes, but deleting a PathRule cascade-deletes all its descendant nodes — including nested paths, child actions, and any other nodes inside that branch.

This action cannot be undone, so confirm you no longer need those nodes before deleting the branch.

What happens when I insert a Path between two existing connected nodes?+

A confirmation dialog appears. If you confirm, the Path is inserted and all existing downstream nodes are moved under the first branch (Path A). The second branch starts empty.

If you cancel, no changes are made. The system also validates depth before insertion — if the combined depth would exceed 3, the Path option is disabled.

Repeater & Workflow Behaviour

Can I use a Path inside a Repeater?+

Yes. A Path inside a Repeater is allowed. Depth constraints still apply, and the PathRule shows a "Stop the loop, if Path Rule fails" checkbox — same as a Filter inside a Repeater.

The Repeater boundary is respected in depth calculations — the backward trace jumps from the Repeater's first child to the Repeater itself and continues backward.

Can I add a Path after a Repeater?+

No — if a Repeater already exists in the backward trace, adding a Path after it is blocked with the message: "Cannot add path after repeater".

The exception is when the node is placed inside the Repeater, which is allowed.

What does read-only mode mean on a Path node?+

All branch addition, deletion, and condition editing are disabled. This applies when you lack edit permissions or when the workflow is locked during execution.

Ensure you have the appropriate permissions and the workflow is not executing to make changes.

Do PathRule conditions work the same as Filter conditions?+

Yes. PathRule uses the identical condition system as Filter — same groups, same operators (boolean, generic, text, number, date), same ALL/ANY match types, same AND/OR group operators, and the same validation rules.

See the Filters documentation for the full operator reference.

Ready to build smarter workflows?

Add a Path node to your workflow and start routing data intelligently across multiple branches.

Get started free →
